4. Supporting power: 100w; Operating voltage: Direct current 12V;
5. Power consumption: less than 100w.h/100kh;
6. Output rate: more than 60 Kg/h;
7. Cutting width: 270mm;

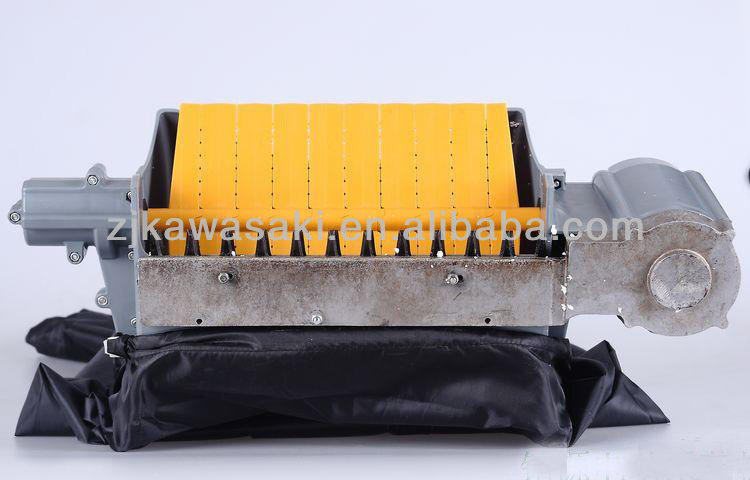

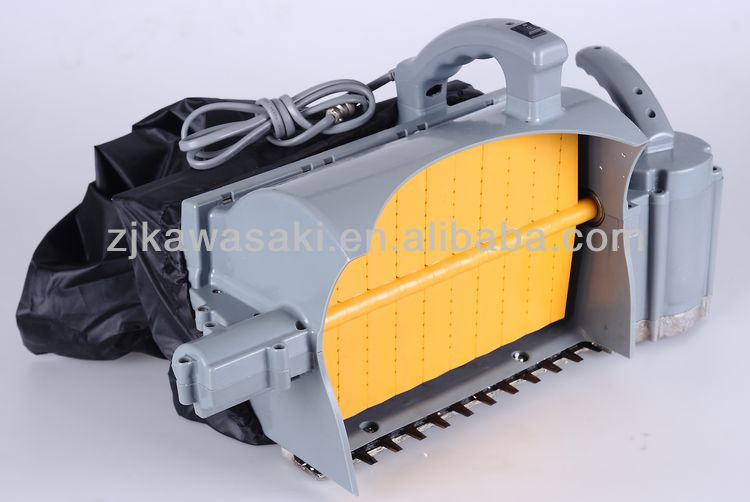

BY200 light weight plucking machine is our hit product, the product designed in a philosophy of convenient single operation and to ensure the quality of tea leaves, accordance with tea famer handwork in different tea plantation and different grade, launch the product after three years research and field test and improve. It high efficiency, low investment, easy operation, environmentally, help you solve the problem of tea plucking.
Carry on the full charge of battery;
Plug the plucker wire to battery;
Hold on the plucking part, turn on the switch and let leaf go alone with the instructed arrow on the machine;
Keep the blade parallel and aim to leaves, then cut them into tea collecting bag;
When the tea collecting bag is full of leaves, please unfasten the string on the bag and pour out of leaves.
Tie the tea collecting bag and get ready to pluck again;
Charge the battery once a month even if it is not used.

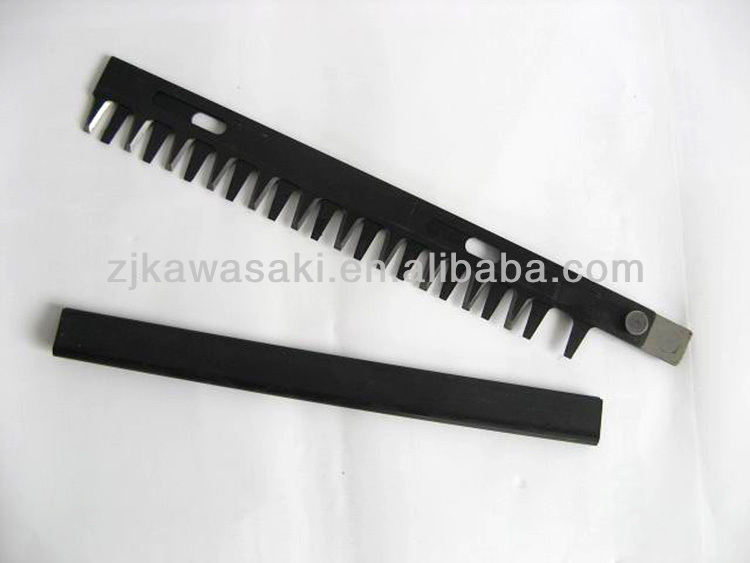

Oil the blades with lubricant oil 1~2 drops in adjustment slide each time before use to avoid wearing out;
When the blades get stuck by thick stalks, turn off the switch immediately to avoid burning out the motor;
When the blade running speed slows down sharply, please charge the battery with voltage 220V (AC) for 8 hours;
Scope of application and cautions
Apply to 2 leaves and a bud, 3 leaves and a bud as well as leaves of 5-20 cm length.
Cautions for safety:
Fingers are not allowed to approach blades during operation;
Recharge the battery after 4-6 hours continuously working;
Do not wash the machine while power is switched on;
A one-year warranty is promised without any man-made disassembly.
If impeller can not work after opening the machine, you can try to check the following steps:
Check the electric wire for battery is connected;
Check whether switch is open or not;
Check whether the connecting places of anode and cathode is loose or not.
